Upgrade Your Audio Visual Experience
Elevate Your Event with KDKinotec's Cinema Equipment
At KDKinotec, we specialize in providing state-of-the-art audio visual equipment for events of all sizes. From projectors and screens to sound systems and lighting, we have everything you need to make your event a success. Our team of experienced professionals will work with you to design a custom solution that meets your specific needs and budget. Whether you're hosting a conference, trade show, or wedding, we've got you covered.
Request a Quote
Ready to take your event to the next level? Contact us for a free quote today!
Our Projectors

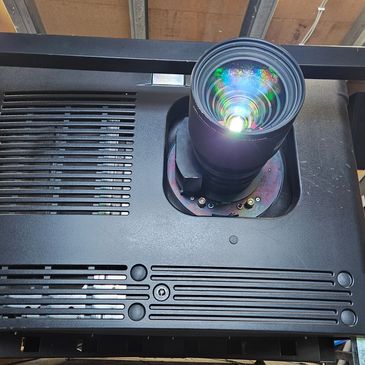

The Barco DP4K-32B
General specifications
Digital MicroMirror Device™ 3 x 1.38" DC4K
Native resolution 4,096 x 2,160 pixels
Housing Hermetically sealed DMDs and optical assembly
Lamp 3kW -7kW (Xenon lamp)
Light output 33,000 lumens
(more than 34,000 lumens using 7kW lamp)
Screen size Up to 32m / 105 ft wide
Contrast ratio 1,850:1
DCI 4K 3D (24 or 30 fps per eye)
DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625Mbps
Dual-channel color-correction
16x AES/EBU audio channels (2x RJ45)
Dimensions 604(H) x 754(W) x 1129(D) mm / 23.78(H) x 29.69(W) x 44.45(D) inch
Weight 141 kg (311 lbs)
Ambient temperature 35°C / 95°F Max.
Exhaust airflow 350 – 390 cfm (10 – 11 m³/min)
Motorized/memorized lens (focus, zoom & shift)
Advanced patented DMD cooling
Safety requirements Class 1 risk group 3
Options 3D add-ons

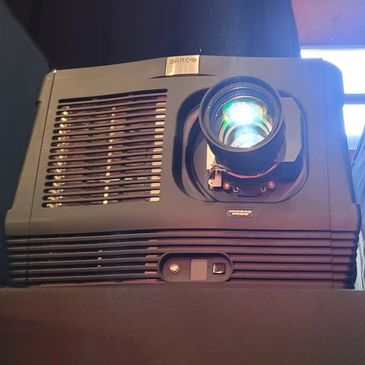

The Barco DP2K-15C+ Laser Projector
Projection Method 3-chip DMD reflection method
Hermetically sealed DMDs and optical assembly
Screen Size [m] Up to 20m
Brightness 15000 Lumens
Contrast Ratio 2200 : 1
Light Source Laser RGB+
Lens Zoom / Focus: Motorized; Motorized
Shift: Horizontal/Vertical Motorized
Other: Dowser (light shutter); Lens memory stores lens setting (shift/zoom/focus); Range of shift is dependent on lens Primary DMD Specifications 2048 x 1080 Chip: 0.98" DLP Tilt Angle [°]: 12
Complete with a Doremi showvault and IMB capable of HFR

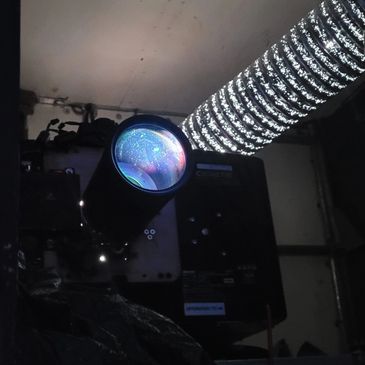

The Christie CP2230U (4K Upgrade
Brightness 33,000 lumens
Cinema screen size 26m screen*
Contrast ratio: >2000:1 full field on/off
Color gamut / number of colors: 35.2 trillion
Digital micromirror device: 1.35" 4K 3DLP
4
DMD DLP Cinema® : 4K (4096 x 2160 pixels)
Resolution: 4K (4096 x 2160)
Supported frame rates: 2D up to 120 fps 3D up to 60 fps/eye
Lens mount configuration: Fully motorized Intelligent Lens System (ILS™)
Power input requirements: Main Input (Head Only): 200-240VAC @ 50-60Hz 6A max
Power consumption: 8800W max
Lamp power supply: 7kW low-ripple switch mode lamp power supply
The CP2230 also has its own Doremi/Dolby Showvault with IMB with HFR capability and HDMI input
